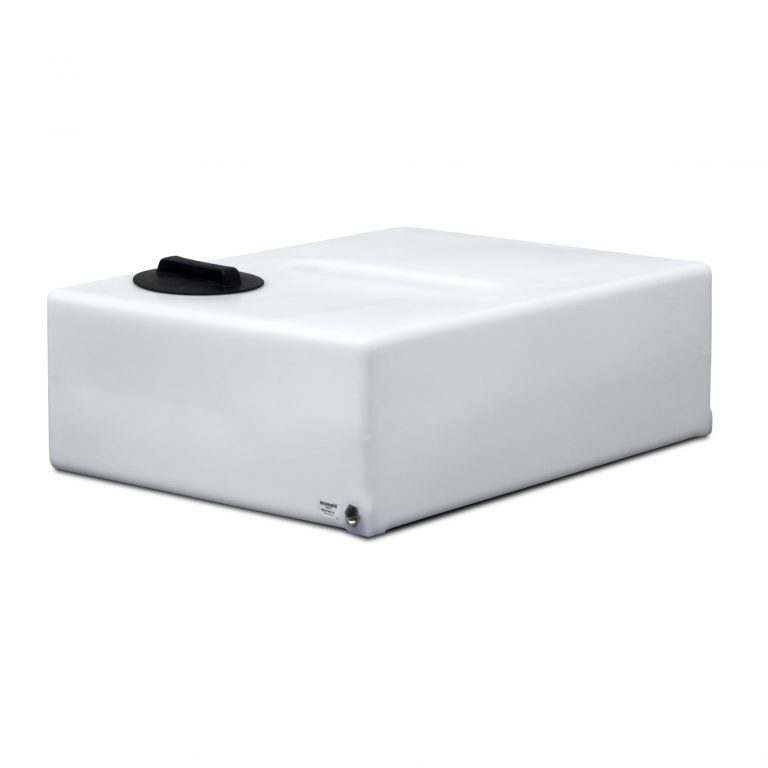

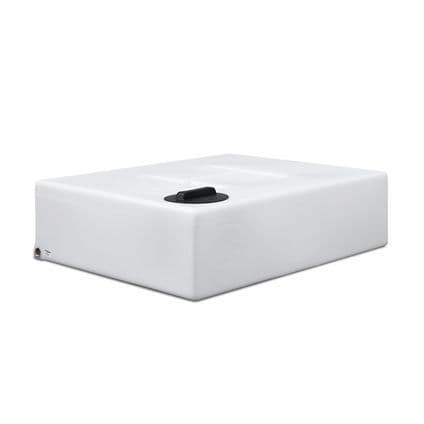

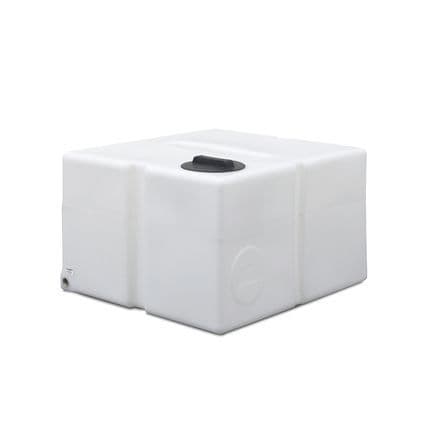

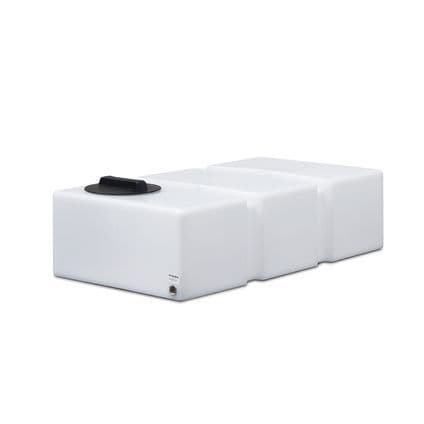

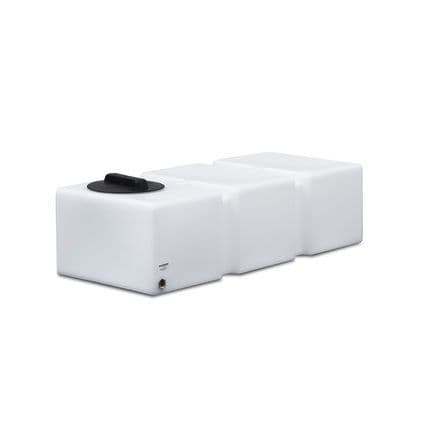

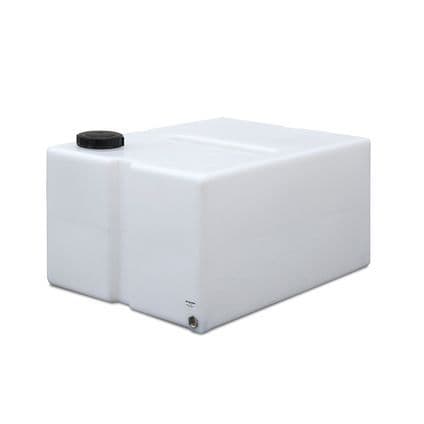

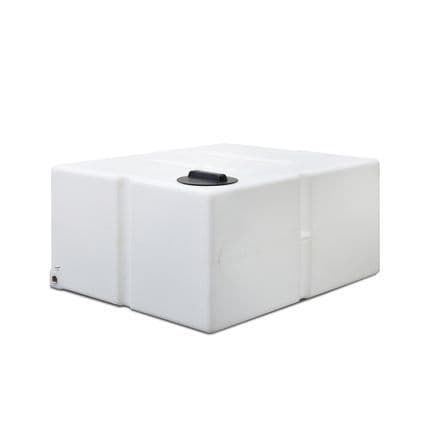

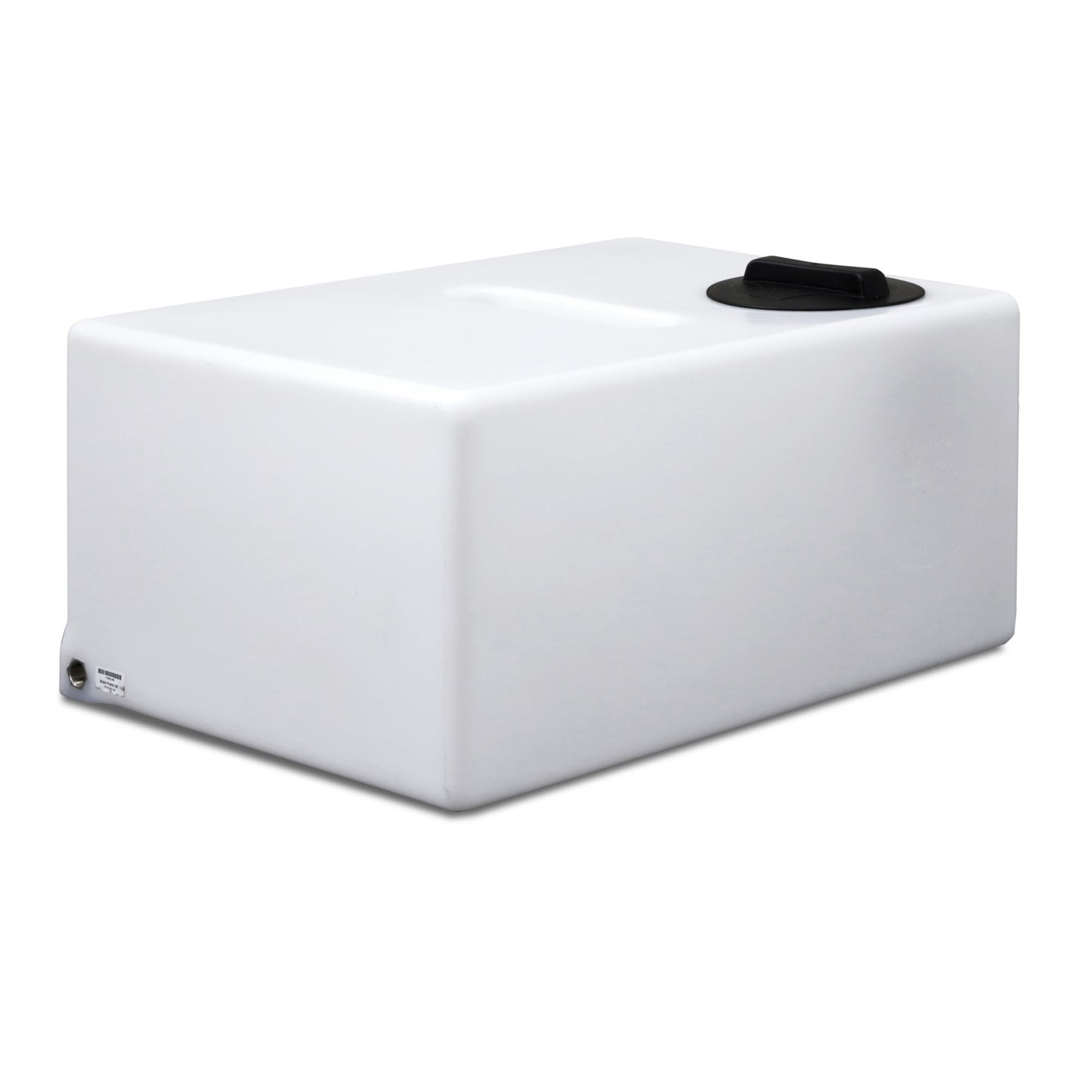

Flat Tanks

Heavy-duty clear polyethylene tank, designed to be mounted upright in your vehicle. The tank has been produced with baffles to restrict movement of the water during transit. Various sizes available.

Dimensions: 125L

Height.....290mm
Width......460mm
Length....1100mm
Weight...10.0kgs
Nomianl Capacity 125 Litres
3/4" BSP outlet

Dimensions: 250L

Height..........325mm
Width...........825mm
Length.........1100mm
Weight........21.0kgs
Nominal Capacity 250 litres
3/4" BSP outlet

Dimensions: 350L

Height..........520mm
Width...........750mm
Length.........990mm
Weight........24.0kgs
Nominal Capacity 350 Litres
1" BSP outlet

Dimensions: 500L

Height........620mm
Width.........920mm
Length.......1000mm
Weight......35.0kgs
Nominal Capacity 500 Litres
1" BSP outlet

Dimensions: 650L

Height..........575mm
Width..........1010mm
Length.........1250mm
Weight........42.0kgs
Nominal Capacity 650 Litres
1" BSP outlet
